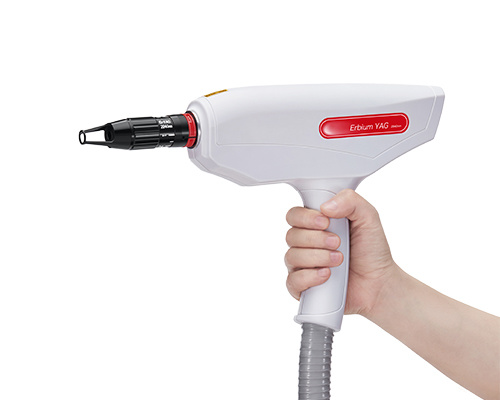

Cortex

Erbium laser resurfacing is designed to remove surface-level and moderately deep lines and wrinkles, while CO2 laser for deeper skin. The CO2 laser and the Er:YAG laser are two most popular resurfacing technologies in practice today.

Advantages:

To combine these two distinct lasers is to minimize their relative disadvantages while maximizing their relative advantages. This combination provides greater precision, increased safety, and unprecedented flexibility.
By using the two types of lasers together, one can ‘‘fine tune’’ the resurfacing procedure by utilizing different wavelengths, different depths of penetration, and different surface necrosis that are required to give a uniform treatment to different areas
The device’s dual wavelengths for optimum resurfacing results, enable physicians to safely treat a broad range of concerns in a variety of skin types
Compared to single energy-source devices, Cortex delivers far more functionality-without the hefty price tag carried by these more limited devices or by bigger, bulkier competitors. In addition to its clinical advantages, the device provides a relatively small footprint, fast treatment times, and a quick payback period.
Cortex has the ability to remove photo damaged skin layer by layer in a precisely controlled manner while leaving behind a very narrow zone of thermal damage became possible.
This laser causes fewer side effects -- such as swelling, bruising, and redness -- so the recovery time should be faster.

Applications:

Cortex Laser System is not invasive device, and it provides an ideal combination of workhorse resurfacing modalities:
Fractionated CO2 –for deeperrejuvenation and collagen stimulation;

Er: YAG –for gentler, superficialfull-face resurfacing,
Including:
Atrophicacne scars
Herpes simplexscars,smallpoxscars
Sun damaged skin
Mild to moderate facialwrinkles
Unevenpigment(brown age spots, freckles,melasma)
Seborrhoeickeratosisand other benign skin growth
Some superficial non-melanoma skin cancers
Some vascular birthmarks (capillary vascular malformations)

Specifications:

Wavelength	10600nm
Mode Structure	TEMOO
Max Power	40W
Aiming Beam	2mW (650nm diode) adjustable
Articulated Arm	7-joint spring-balances articulated arm
Laser Operation Modes	CW, Pulse, Ultra Pulse
Tissue Exposure Modes	Continuous, Single pulse, Repeat pulse
Wavelength	2940nm
Pulse Energy	Adjustable from 200-1000mJ ±10%
Power Supply	110V/220V
Dimension	340mm460mm1500mm
