Q- switched Nd Yag - TTM-1

The Q-switched Nd:YAG lasers are with dual wavelength, 1064nm and 532nm. It is used mostly for non ablative skin rejuvenation, darkened scars, brown birthmarks. It is recognized for its ability to remove a wide range of tattoo colors. The 1064-nm Nd:YAG laser, which has the deepest penetration and carries the least risk for hypopigmentation, is indicated for black and dark blue pigments. It is considered the ideal choice for tattoo removal in dark-skinned patients, since its longer wavelength represents a lower affinity for melanin. The 532-nm Nd:YAG laser is effective for removal of red, brown, and orange pigments

Advantages:

-Pain free and comfortable

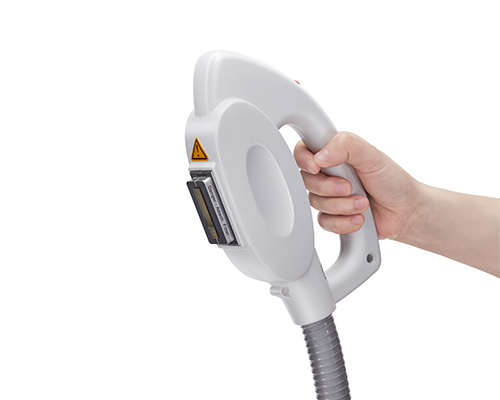

Slowly increase the temperature by constantly moving the handpiece during treatment, the energy is delivered uniformly, and the patient feel comfortable

The laser system with an efficient skin-cooling system (Sapphire surface contact cooling tip) is used to chill the skin during treatment period, to minimize the uncomfortable of thermal damage to surrounding skin cells.

-Works with all skin type

The high average power, low fluence, and high repetition rate, so that the energy is delivered safely for all skin types.

-Short treatment

Enables you to treat in only 15-20 minutes.

Applications:

-Removal of unwanted tattoos
-Treatment of pigmented lesions on skin types I-IV

Specifications:

Wavelength	532 nm, 1064 nm
Energy	400 - 1000 mJ
Spot Size	1.5 - 4mm
Repetition Rate	1 ~ 5Hz
Pulse width	Up to 200 us
Operatiing Mode	Q-switched
Power Supply	110V/220V
Dimension	500mm410mm360mm
